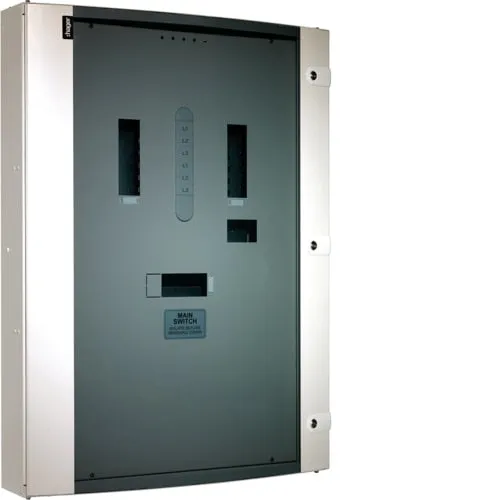

Hager JN204BG 250A Incoming 125A Outgoing 4 Way Outgoers Glazed Door CE
Product Description4 Triple Pole Ways 250A Panelboard
FeaturesCharacteristics
- Comprises of IP3XD rated enclosure, pan assembly, twin neutral and earth bars
- Conforms to BS EN 61439-2. InA = 250A, Inc = 125A, Icc = 25kA
- Supplied without incoming kit, JN 250A incomer kit must be used
- Form 3B type 2 using outgoing terminal shield (form 3A without terminal shield)
- - Removable side gland plates are standard. Removable gland plates are provided top and bottom for ease of installation
- Incomers: 3 and 4 pole incomers, cable capacity: M12 bolt, direct connection kit: M10 hexagonal bolt
- Outgoers: 1 & 3 pole MCCB: 70mm2 flexible/ 95mm2 solid
- Key lock, meter pack, DIN rail, extension box, spreader box
- Adjustable thermal options on triple pole
Data Sheet:
