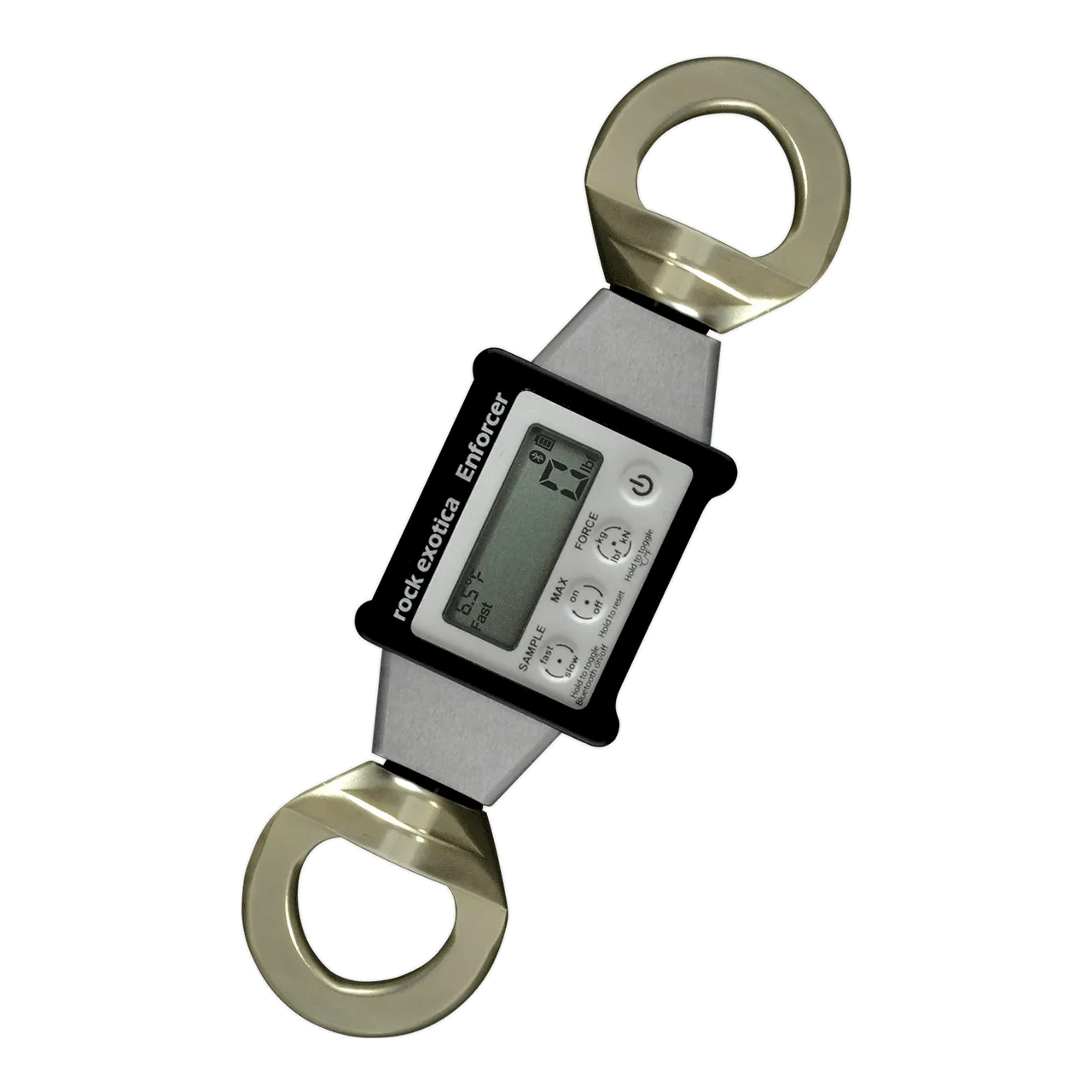

The Enforcer is a compact aluminum load cell that measures force up to 20 kN. Utilizing two sampling modes, the Enforcer is able to monitor systems, and log drop testing in high resolution. Unique features like Bluetooth connectivity and swivel attachment points separate the Enforcer into a class of its own.
*Not for use with steel cables or wire rope.
- Lightweight aluminum construction.

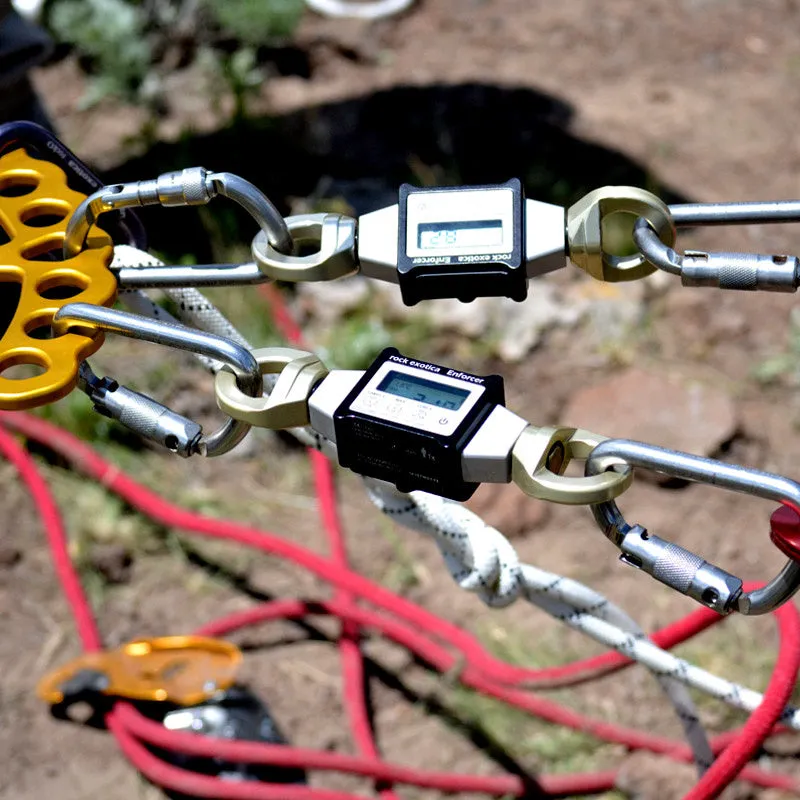

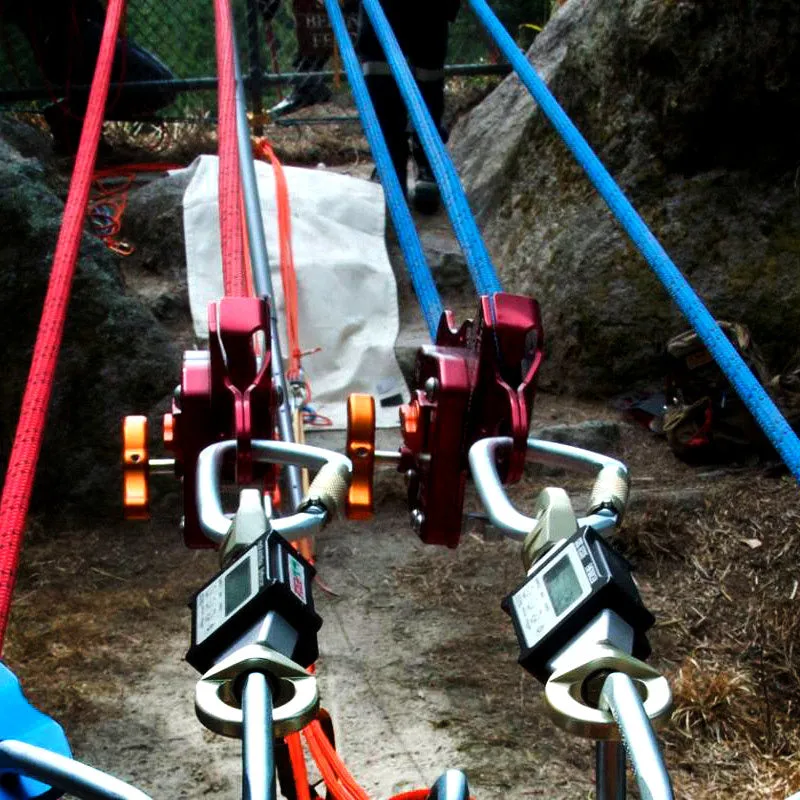

- Compact & portable design facilitates “in-line” use in rigging systems.
- Swivel attachment points diminish potentially dangerous torsional and off-axis forces.
- Features two sampling modes: “Slow” for monitoring and “Fast” for drop-testing.
- Monitor forces wirelessly on your iPhone with built-in Bluetooth connectivity.
- Record and download graphs of events (Enforcer app required. Sold separately)
- Measures force in kg, lbf and kN.
For use with the ENFORCER App - Get the Enforcer App on the Apple Store

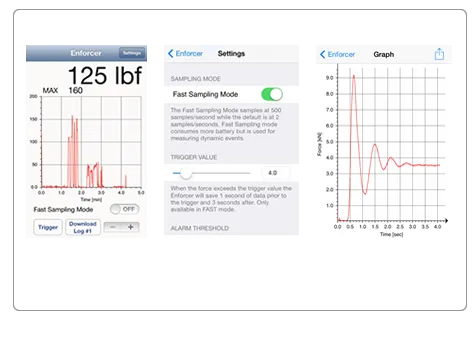

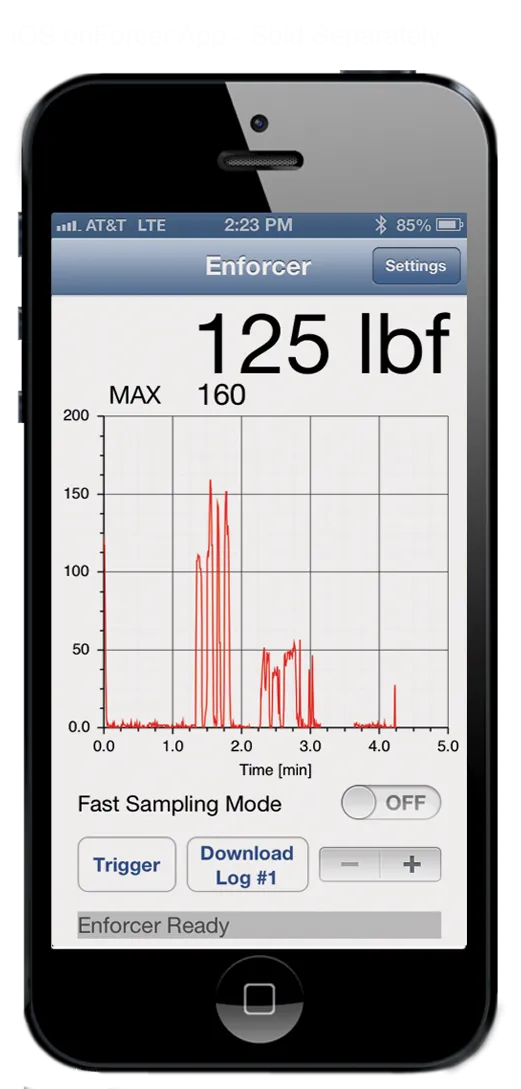

The ENFORCER App for iPhone greatly expands the capabilities of Rock Exotica's ENFORCER Load Cell. With this combination you can accurately monitor static forces remotely and record dynamic events with up to 500 samples per second. A graph of the force can be viewed directly on the iPhone but also sent as an email attachment for further analysis. Additionally it can be saved to cloud services such as Dropbox and Google Drive. App sold separately.
Specifications
- MBS: 36 kN
- Max Reading: 20kN
- Accuracy: /- 2%

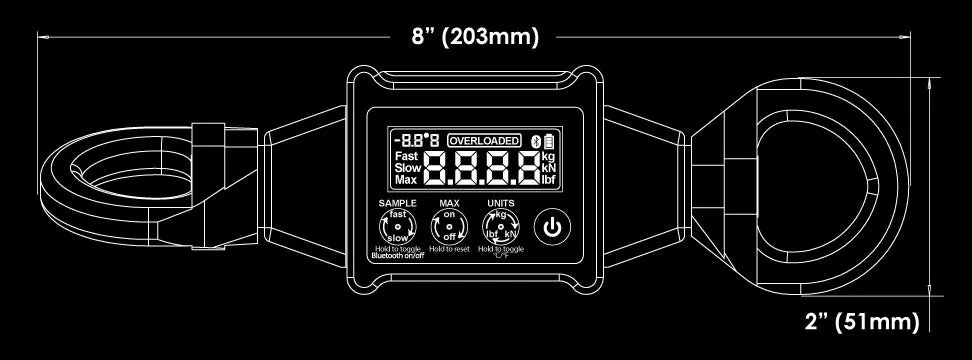

- Length: 8.0"(203mm)
- Width: 2.1(53mm)
- Weight: 14 oz (400gm) w/batteries
- Certification: CE
